Megan Racing Euro II Series Coilover Damper Springs For 84-91 BMW 3-Series E30 w/51mm Front Strut
Megan Racing Euro II Series Coilover Damper Springs For 84-91 BMW 3-Series E30 w/51mm Front Strut
SKU:MR-CDK-E3051
Couldn't load pickup availability
Product Information:
Product Information:
Application:
For 1991 BMW 318i RWD E30
For 1991 BMW 318is RWD E30
For 1986-1988 BMW 325 RWD E30
For 1984-1987 BMW 325e RWD E30
For 1986-1987 BMW 325es RWD E30
For 1987-1991 BMW 325i RWD E30
For 1987-1991 BMW 325is RWD E30
Remark:
Fit 1982-1994 3-Series E30 with 51mm Front Strut Outer Diameter ONLY. Does NOT Fit M3 or AWD Models
Potential buyers, please perform measure the strut diameter prior to making your purchases. It is a generally easy task and can be done without lifting the vehicle. If you have any further questions, please feel free to ask
Install Note:
All 6-cylinder E30 models (3-series 84-91) and the 1990-1991 318i/is/ic models (with the M42 4-cylinder) use the (51mm larger front strut diameter). US model 1984-1985 318i models use the (45mm smaller size strut tube).
Usage of lower offset aftermarket front wheels is recommended. If stock front wheels are used with this coil-over system, 0.5" wheel spacers are recommended for clearance.
Description & Feature
The (Euro Street Series) is our new Luxury Package based off of our Street-Series coil-over line-up using similar specifications and design, but offering a more conservative spring and damper setup for a more comfortable ride, yet still providing a sporty feel and control.
Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.
Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.
Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

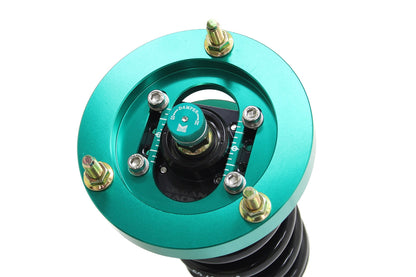

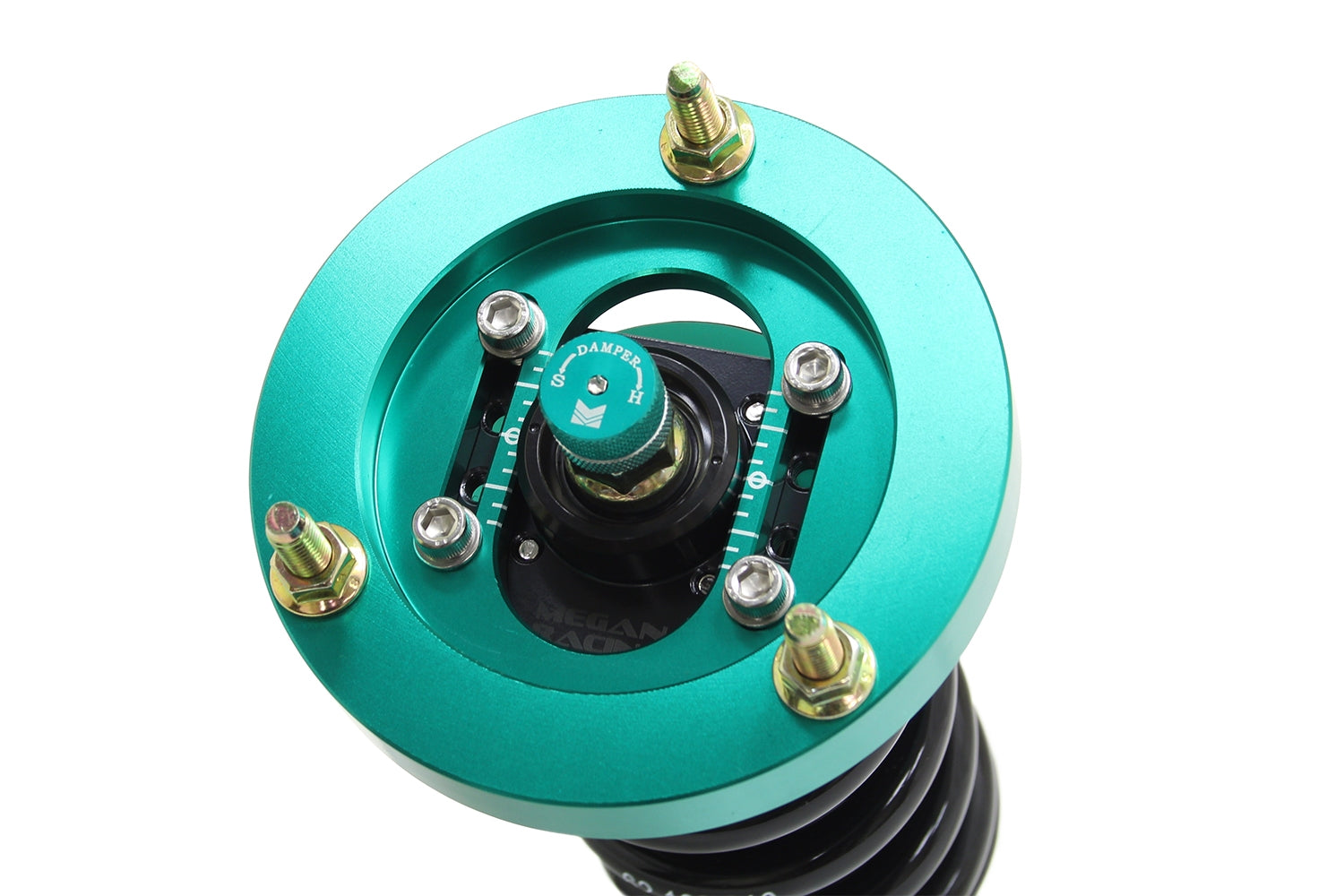

On applications utilizing strut-type suspension designs, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.
The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.
- Material: CNC Machined Steel and Aluminum Construction
- Color: Green
- Surface Finish: Anodized
- Style: Euro II Series
- Full Length Adjustability, Adjustable Ride Height
- Monotube Internal Single Cylinder Construction
- 32-Levels of Damper Compression & Rebound Simultaneous
- Front Spring Rate: 10 kg/mm
Rear Spring Rate: 8 kg/mm (Aggressive Spring Rate) - Front Damper: 120mm stroke; 280mm length; M2 valving code
Rear Damper: 150mm stroke; 250mm length; 44R01 valving code
Product Content:

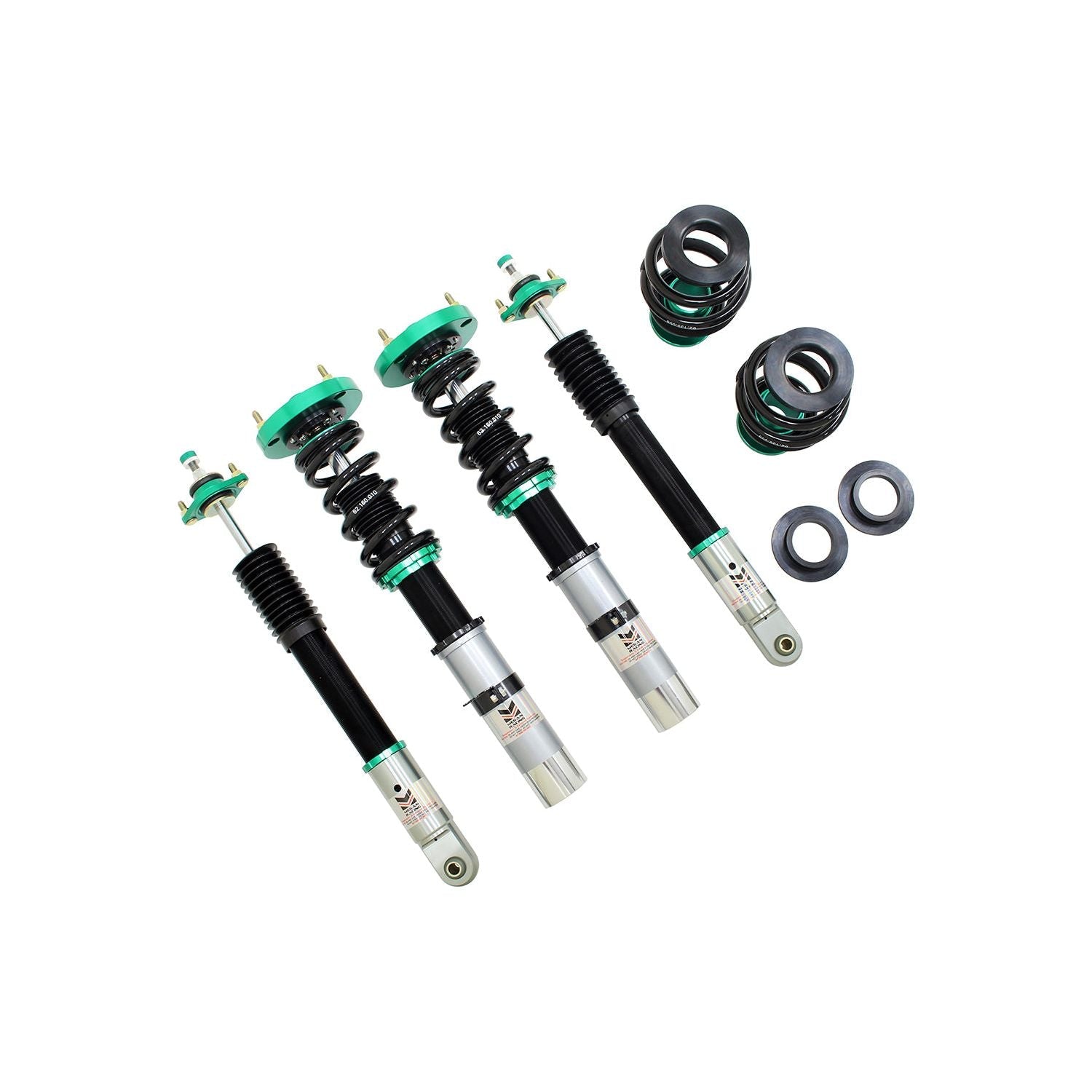

1 x Set of Coilover Springs Kit (2 Front + 2 Rear)
No Instruction, Professional Install Recommended
Cross Reference Number:
MR-CDK-E3051, MR-CDK-E3051, MRCDKE3051
